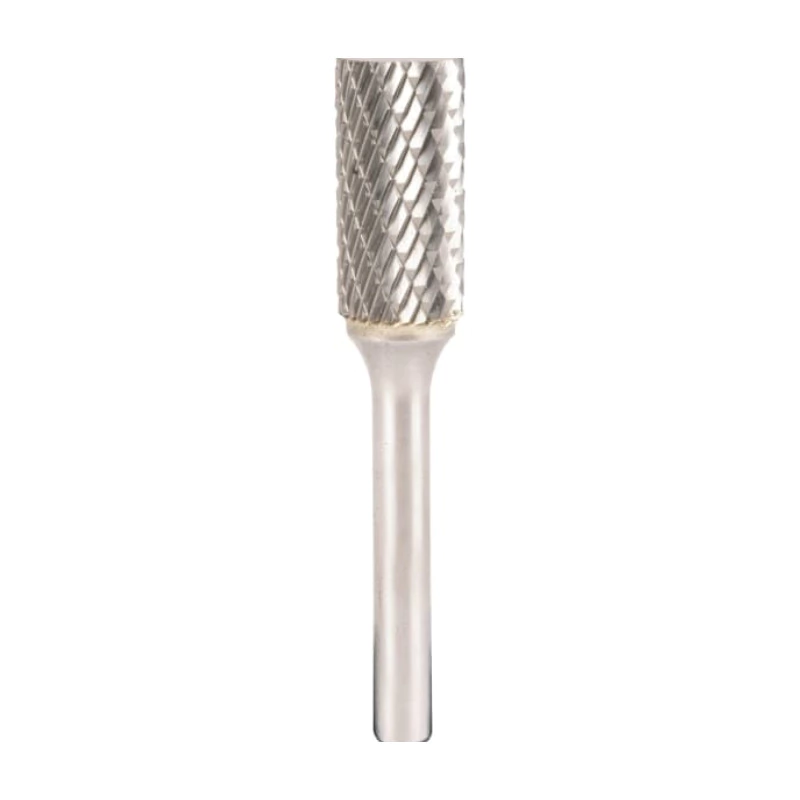

Fresas de Metal Duro.
|
Diámetroen mm
|
Largoen mm
|
Diámetro del vástagoen mm
|
Alturaen mm
|
Dentado
|
Revoluciones permitidasen 1/min
|
Referencia
|
|---|---|---|---|---|---|---|
| 3 | 38 | 3 | 14 | 6 | 100000 | 295482 |
| 6 | 50 | 6 | 18 | 2 | 65000 | 295521 |
| 6 | 50 | 6 | 18 | 6 | 65000 | 295531 |
| 6 | 50 | 6 | 18 | 65000 | 334116 | |
| 6 | 50 | 6 | 18 | 65000 | 334117 | |
| 8 | 64 | 6 | 19 | 6 | 55000 | 295552 |
| 8 | 64 | 6 | 19 | 55000 | 334118 | |
| 8 | 64 | 6 | 19 | 55000 | 334119 | |
| 9.6 | 64 | 6 | 19 | 3 | 55000 | 295563 |
| 9.6 | 64 | 6 | 19 | 6 | 55000 | 295568 |
| 9.6 | 64 | 6 | 19 | 55000 | 334120 | |
| 9.6 | 64 | 6 | 19 | 55000 | 334121 | |
| 12.7 | 64 | 6 | 19 | 6 | 35000 | 295594 |
| 12.7 | 70 | 6 | 25 | 3 | 35000 | 295604 |
| 12.7 | 70 | 6 | 25 | 6 | 35000 | 295609 |
| 12.7 | 70 | 6 | 25 | 35000 | 334122 | |
| 12.7 | 70 | 6 | 25 | 35000 | 334123 | |
| 16 | 70 | 6 | 25 | 6 | 25000 | 295621 |
